Brand: MINIHOUZZ

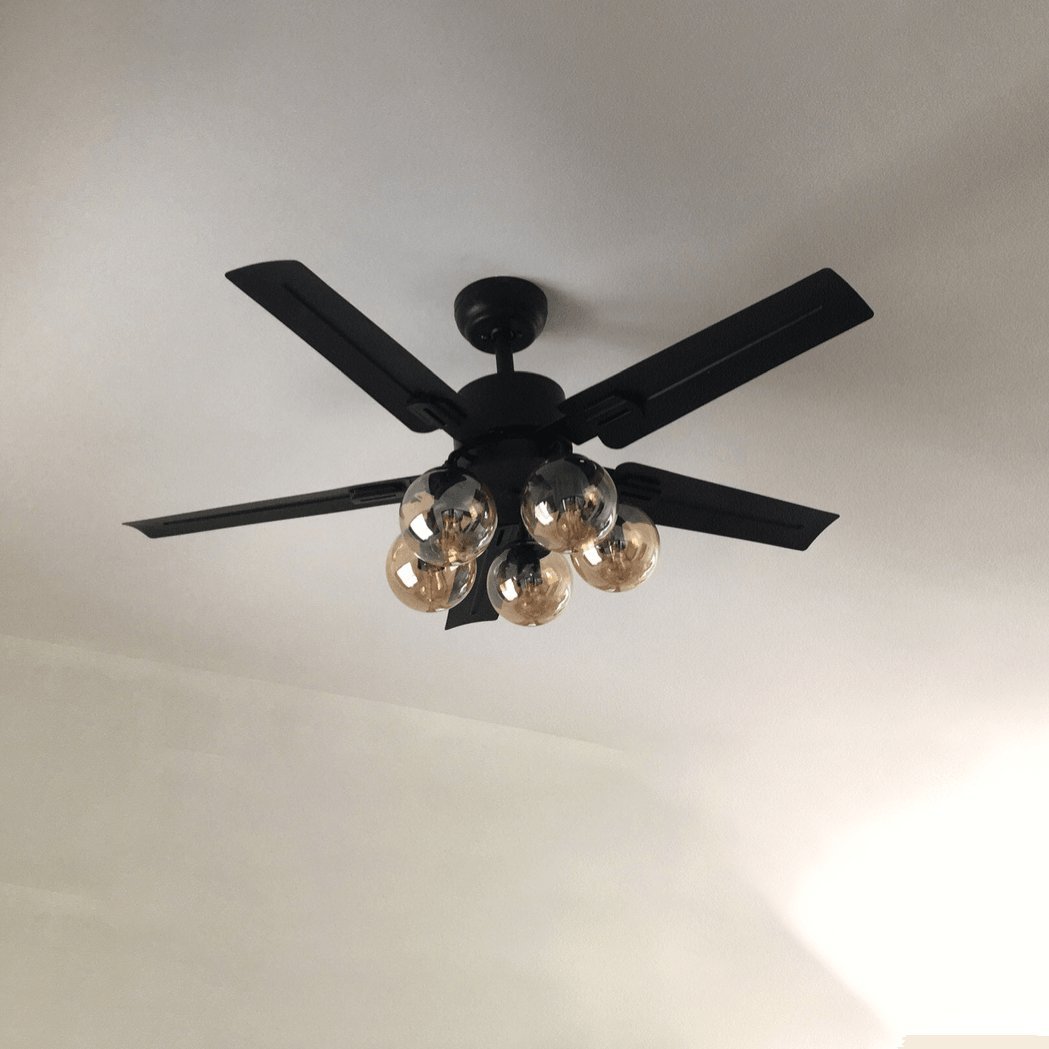

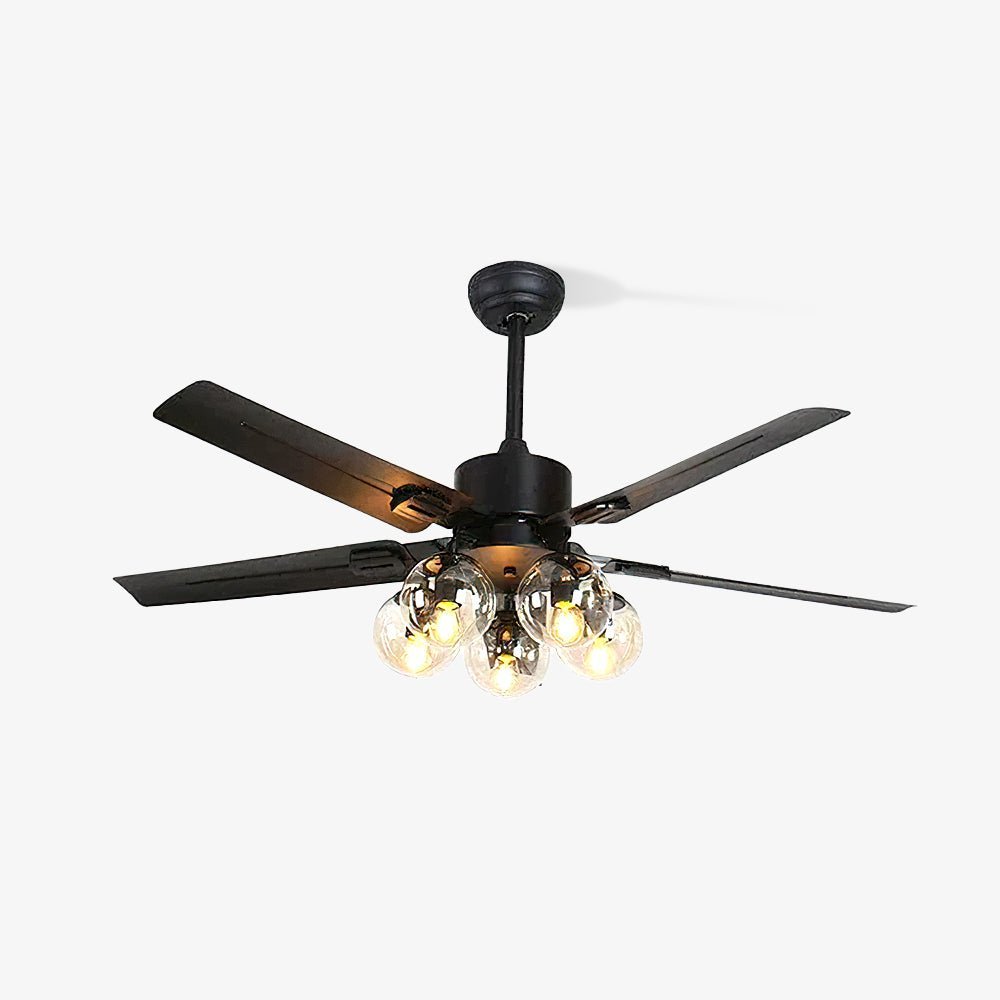

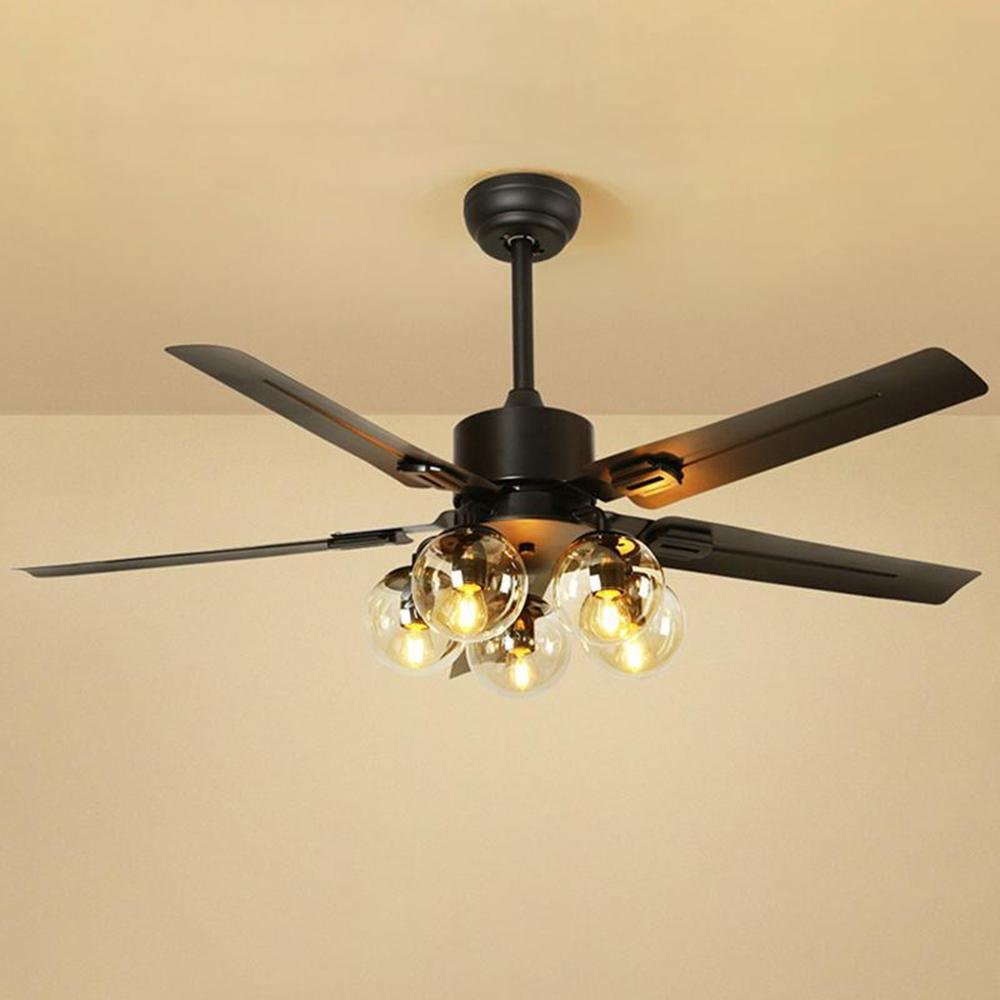

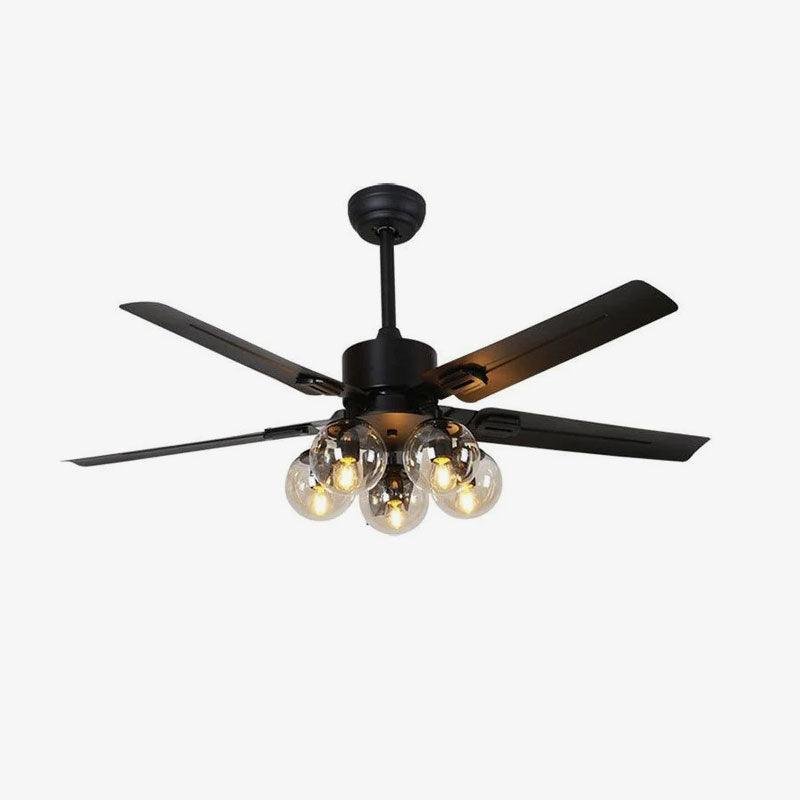

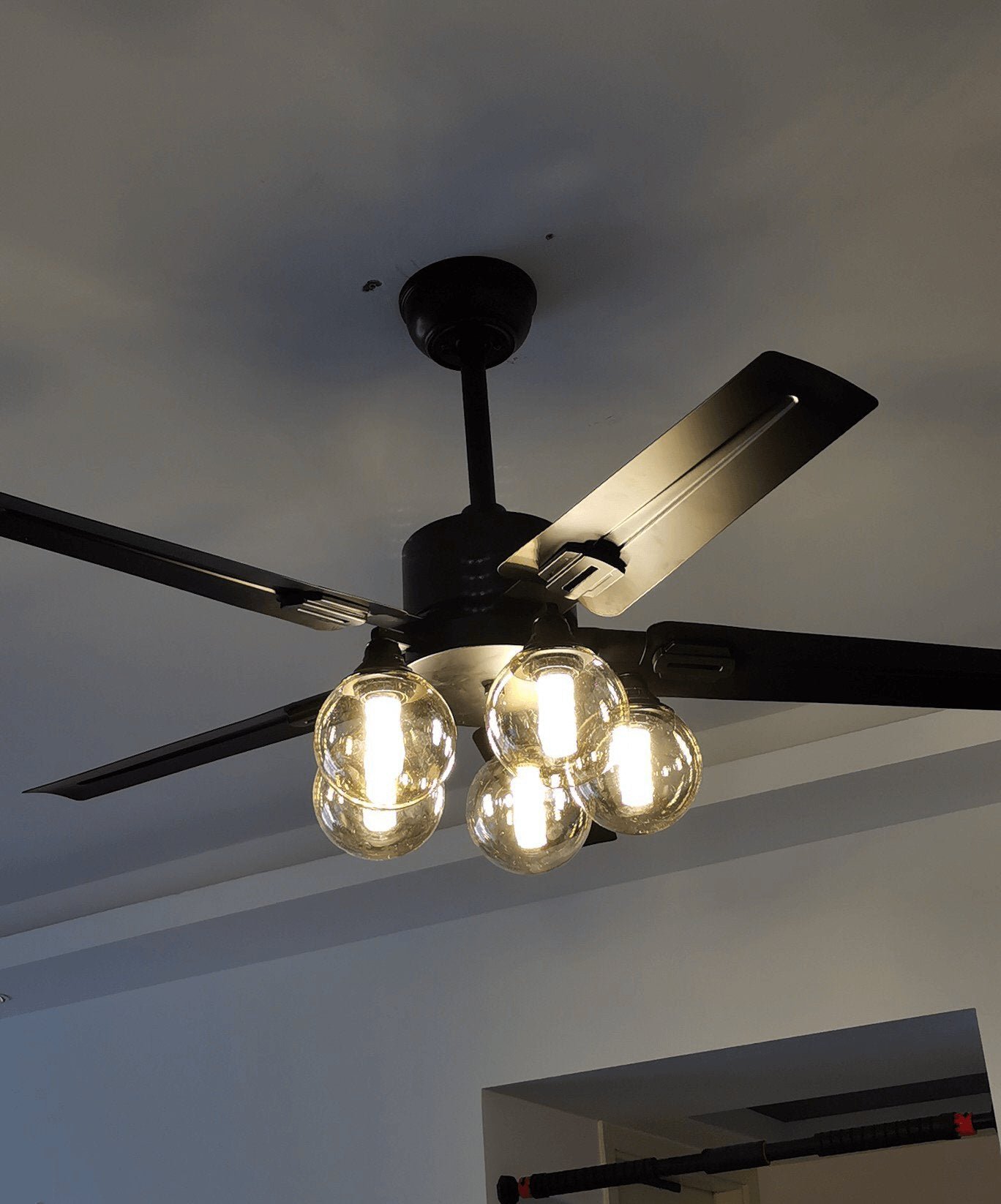

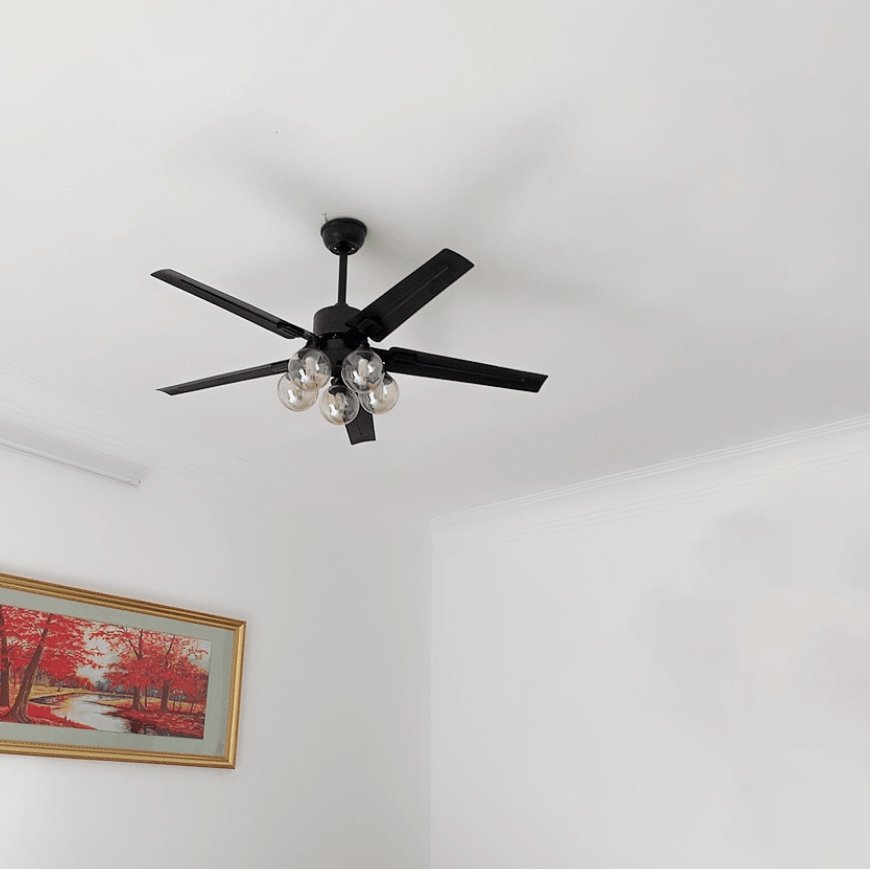

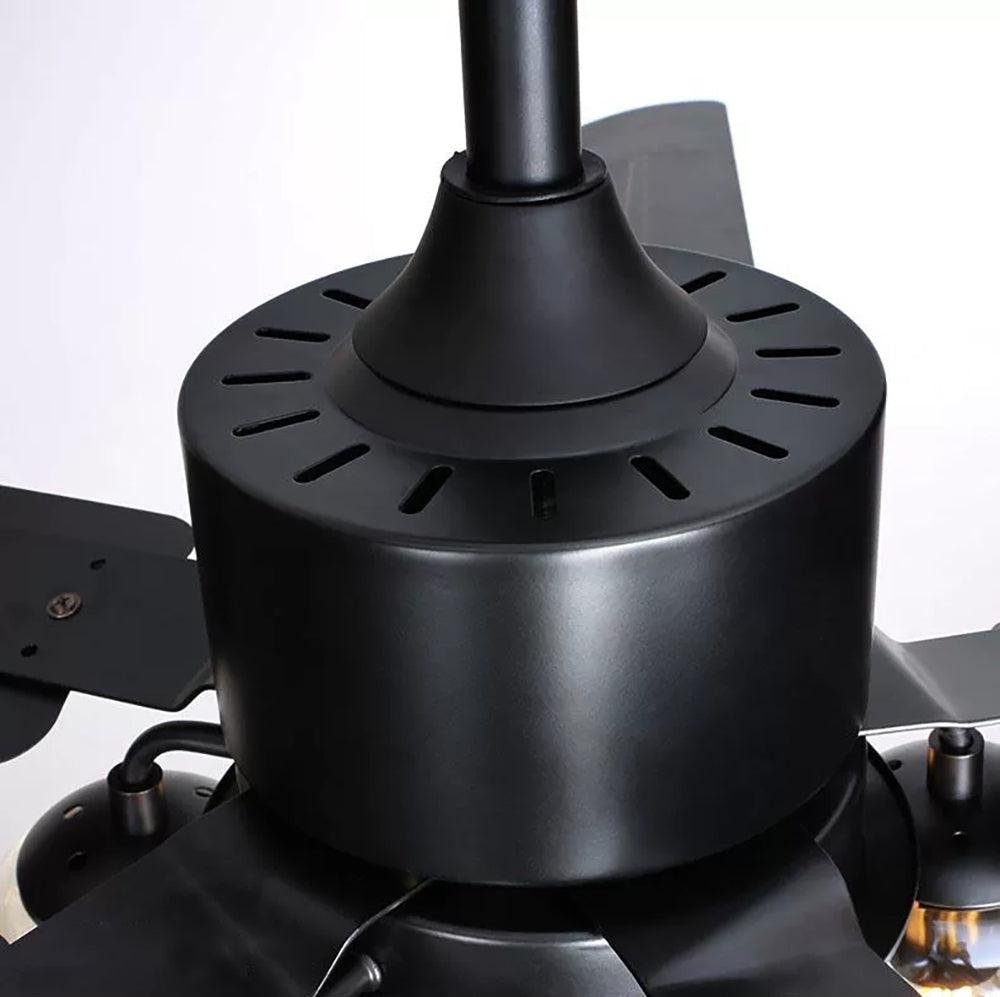

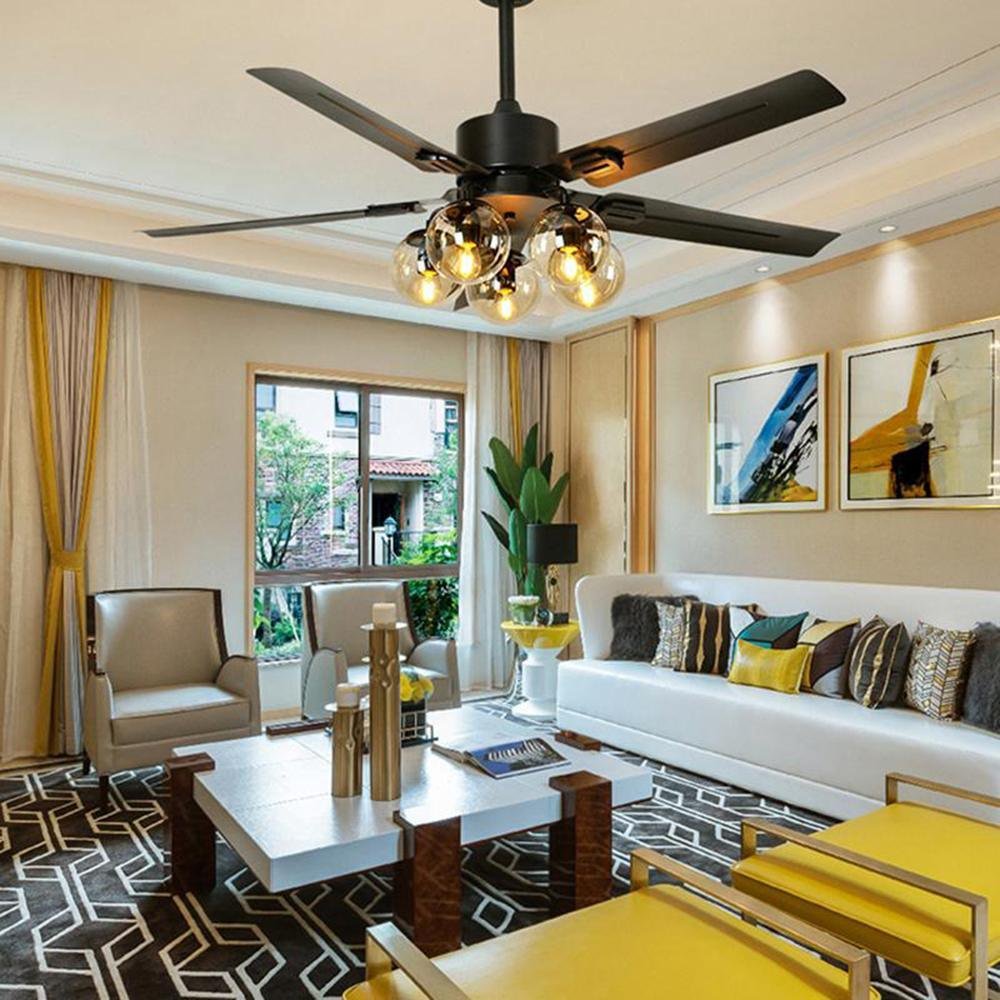

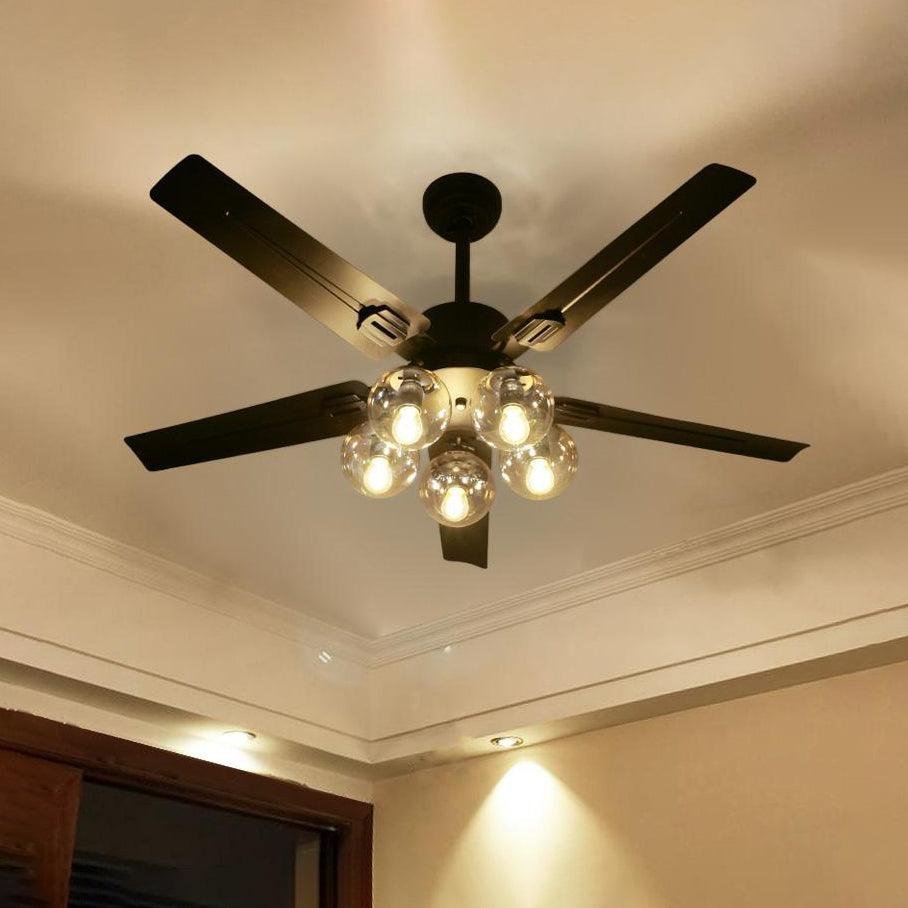

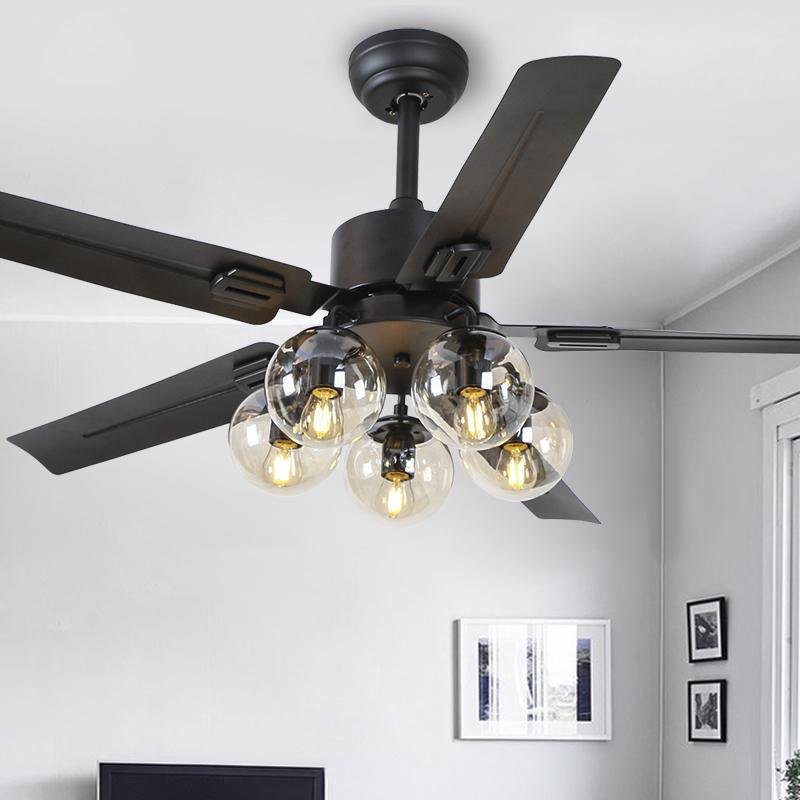

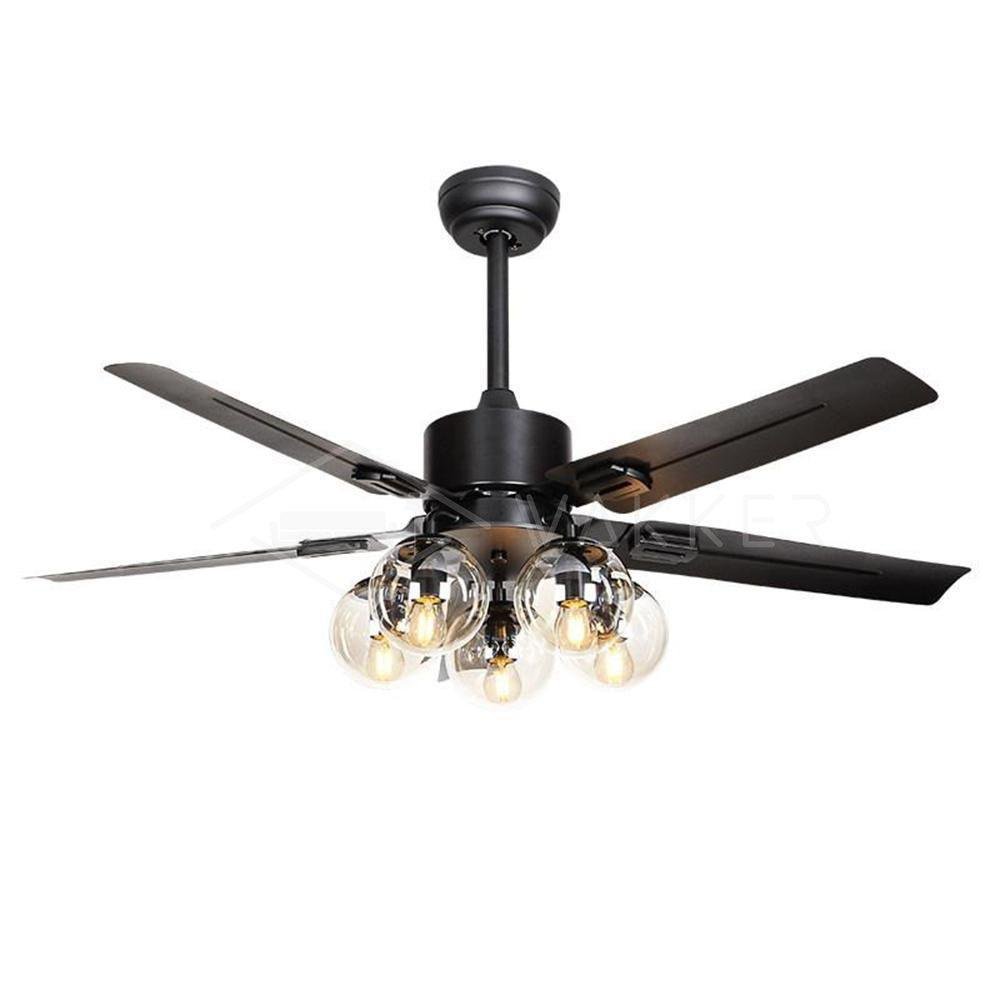

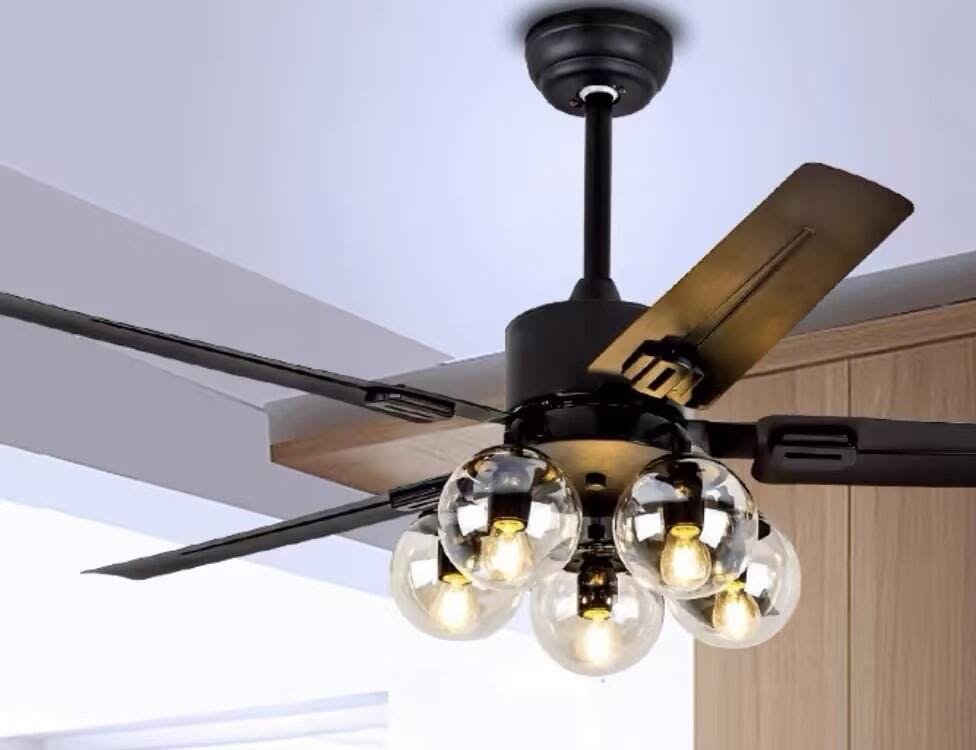

The MINIHOUZZ Ceiling Fan provides a contemporary aesthetic suitable for modern interior spaces. Available in three sizes—42 inches, 48 inches, and 52 inches—this fixture is constructed from durable metal with a high-temperature baking paint finish. The 3-speed motor supports efficient air circulation with a quiet, stable operation. The integrated lighting design features 3 to 5 glass lamps compatible with 40-watt bulbs, providing functional illumination for various room settings.
Installation Requirements
- This ceiling fan should not be installed on ceilings composed of joists with gypsum board or wood panels to prevent noise and stability issues.
- Installation is suitable for cement concrete and solid wood beams; prefabricated ceilings are not recommended.
- For installation surfaces featuring round or square grooves, specific dimensions regarding the groove’s diameter and depth must be accounted for.
- This fixture is not suitable for sloped ceilings. The mounting beam must have a minimum width of 6 cm and the ceiling structure must support a weight capacity exceeding 20 kg.

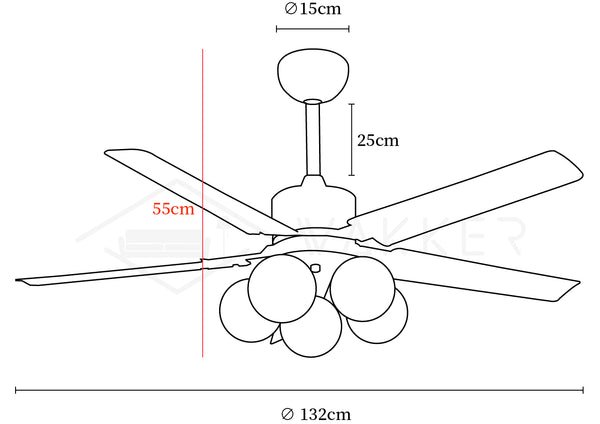

Product Dimensions
Model A:
- Diameter 107 cm x Height 55 cm (42 in x 21.7 in)
- Diameter 122 cm x Height 55 cm (48 in x 21.7 in)
- Diameter 132 cm x Height 55 cm (52 in x 21.7 in)
Model B:
- Diameter 107 cm x Height 55 cm (42 in x 21.7 in)
- Diameter 122 cm x Height 55 cm (48 in x 21.7 in)
- Diameter 132 cm x Height 55 cm (52 in x 21.7 in)
Technical Specifications
- Material: Metal, Glass, and Wood

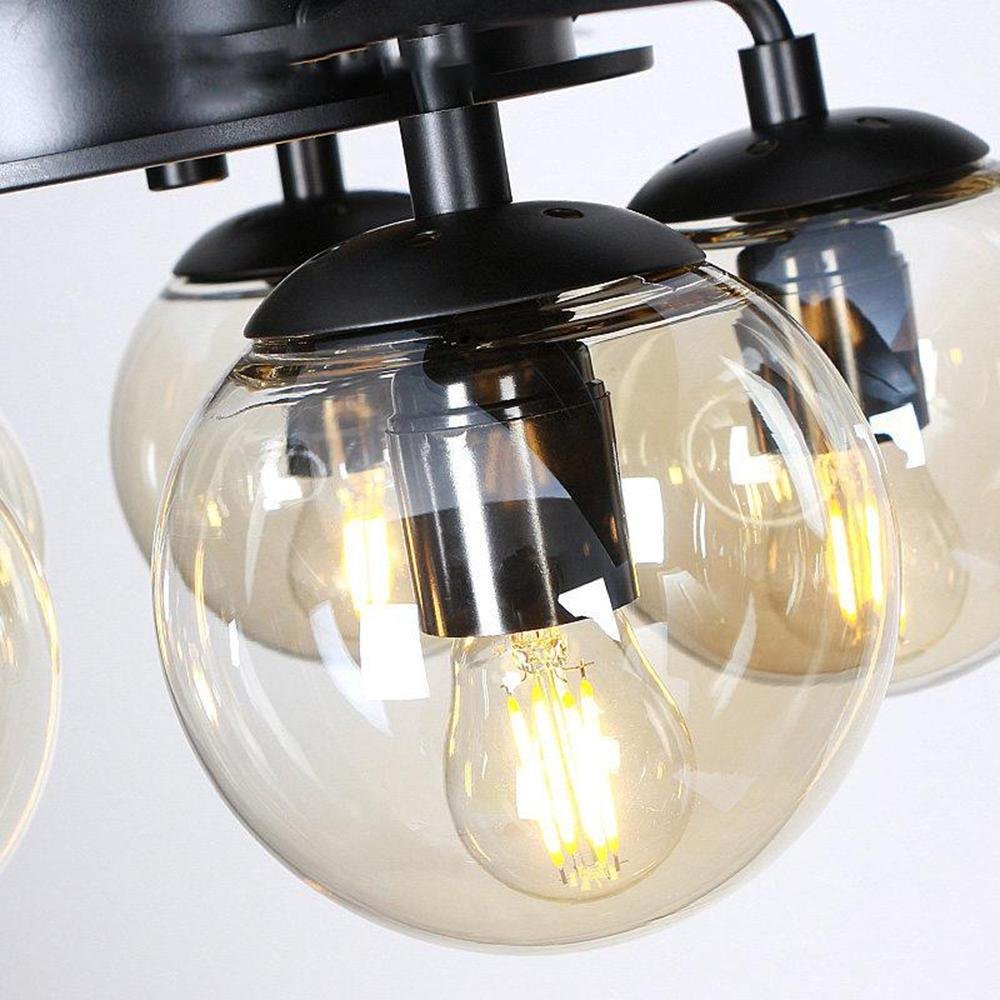

- Light Source: Compatible with LED or Edison bulbs

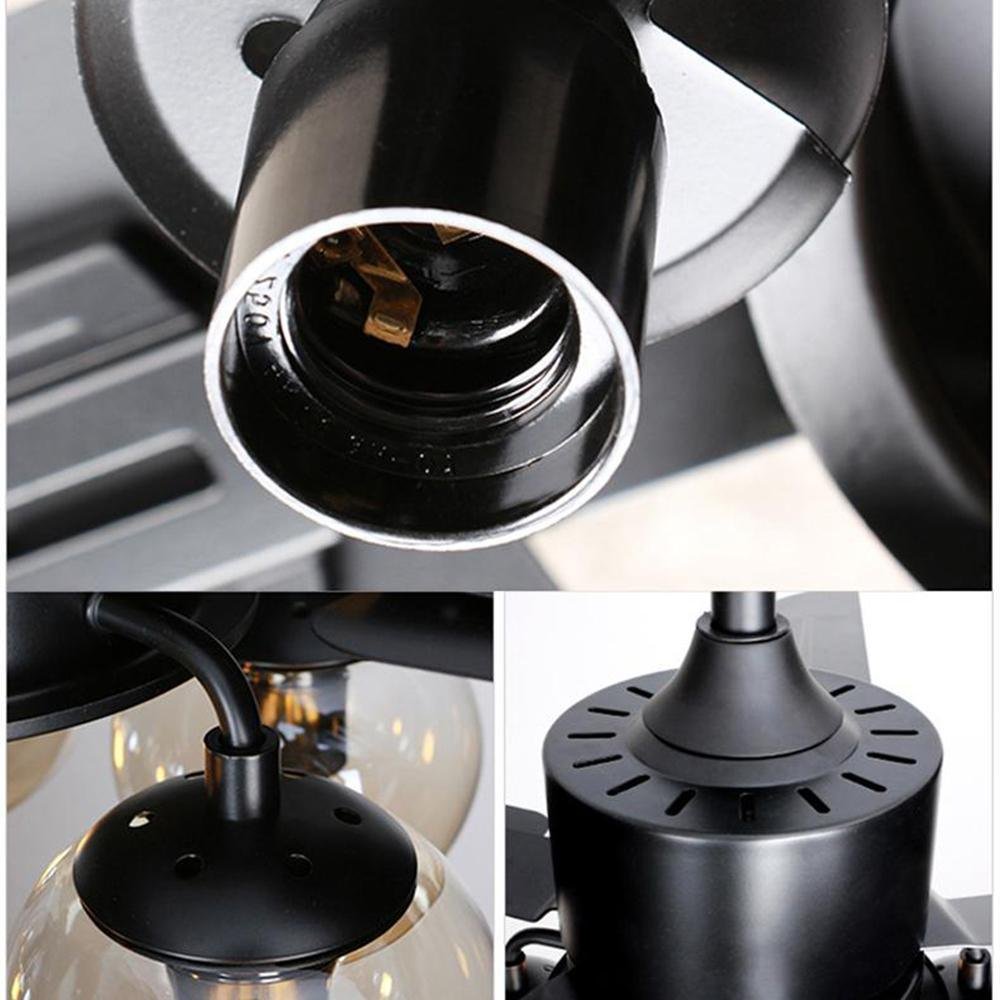

- Socket Base: E26 or E27
- Voltage: AC 110-240V
- Mounting: Ceiling mounted
- Environment: Indoor use
- Moisture Rating: IP20 (Damp-rated, not waterproof)
- Finish: Black
- Wiring: Hardwired
- Control: Compatible with standard wall switches (switch not included)

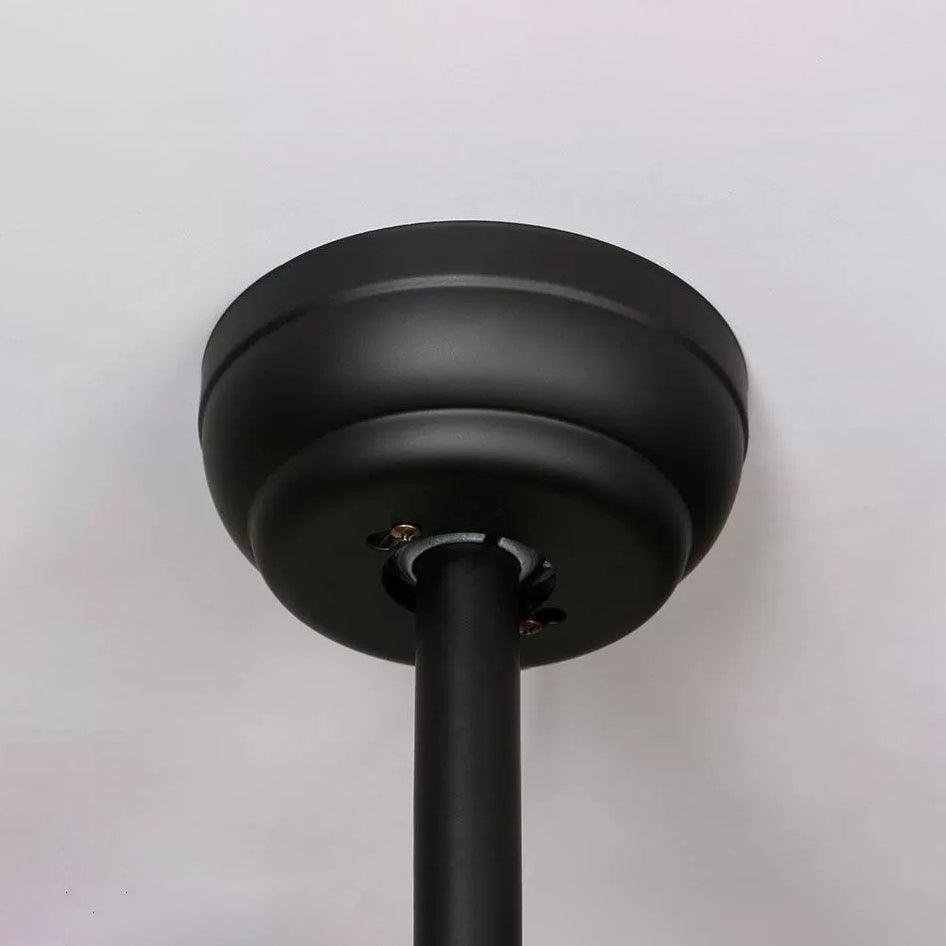

- Suspension: Includes a 50 cm (19.7 inch) rod
- Certifications: UL, ETL, CE, and SAA listed
