Brand: Minihouzz.

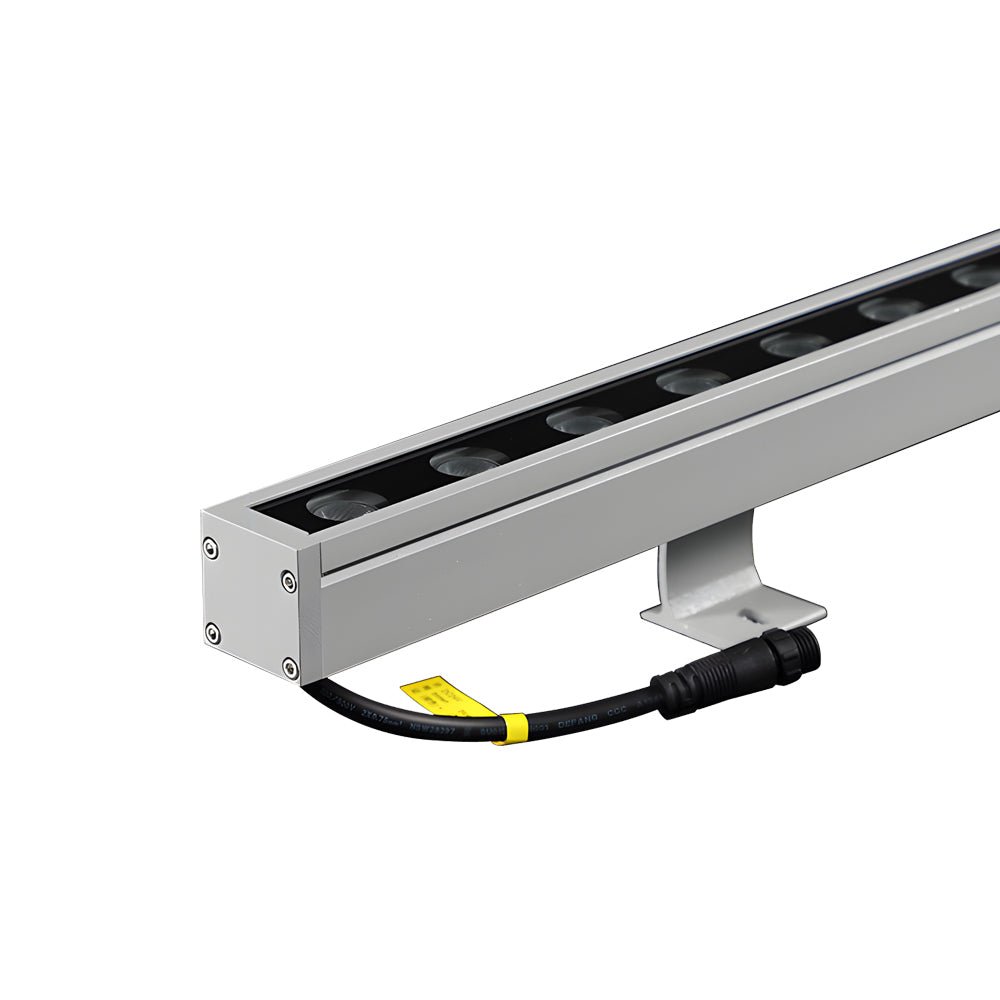

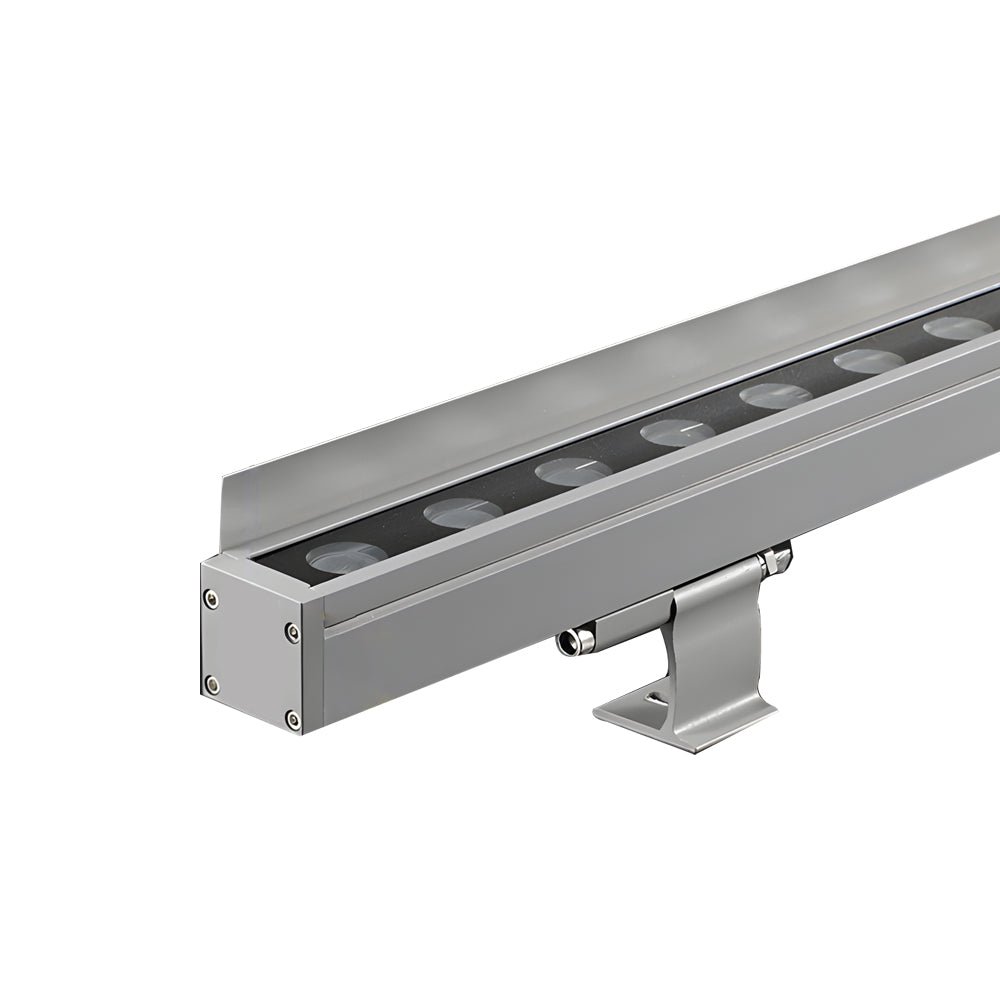

The LED linear wall washer provides bright lighting, designed to create a unique light effect. It features a thick aluminum housing with a modern, elongated design, a matte gray finish, and a tempered glass lens. Mounting brackets allow for a flexible, 180° adjustable design. This energy-saving 24V linear wall washer is available in two designs: with or without baffles. It is available with three LED light color options (Yellow Light, Warm White Light, White Light).
Installation Note: This wall washer light operates on DC24V low voltage. It requires connection to a power supply (transformer) before installation and testing. Direct connection to 110V voltage will result in damage to the lamp.
DETAILS
| Product Name: | 24V Linear Wall Washer Light |
| Type: | Linear Wall Washer Light |
| Style: | Modern |
| Fixture Material: | Aluminum |
| Fixture Color: | Gray |
| Shade Included: | Yes |
| Shade Material: | Tempered Glass, Acrylic Optical Lens |
| Shade Color: | Clear |
| Fixture Shape: | Linear |
| Light Source: | LED |
| Integrated LED: | Yes |
| Light Source Included: | Yes |
| Number of Lights: | 1 |
| Color Temperature: | Yellow Light, Warm White Light, White Light |
| Power: | 18W/24W/36W/48W/72W |
| Color Temperature Dimming: | No |
| Brightness Dimming: | No |
| Light Direction: | Up |
| Voltage: | DC24V |
| Power Source: | Hardwired |
| Mounting Type: | Wall, Floor |
| Indoor/Outdoor: | Outdoor |
| Waterproof: | IP65 |
| Luminous Flux: | 100 (LM) |
| Color Rendering Index: | 90 |
| Lighting Angle: | 120° (Degrees) |
| Control Mode: | External Control |
| Default Cable Length: | 10cm/3.9’’ |
| Working Temperature: | -25°-（45°） |
| Applicable Scene: | Outdoor Lighting |

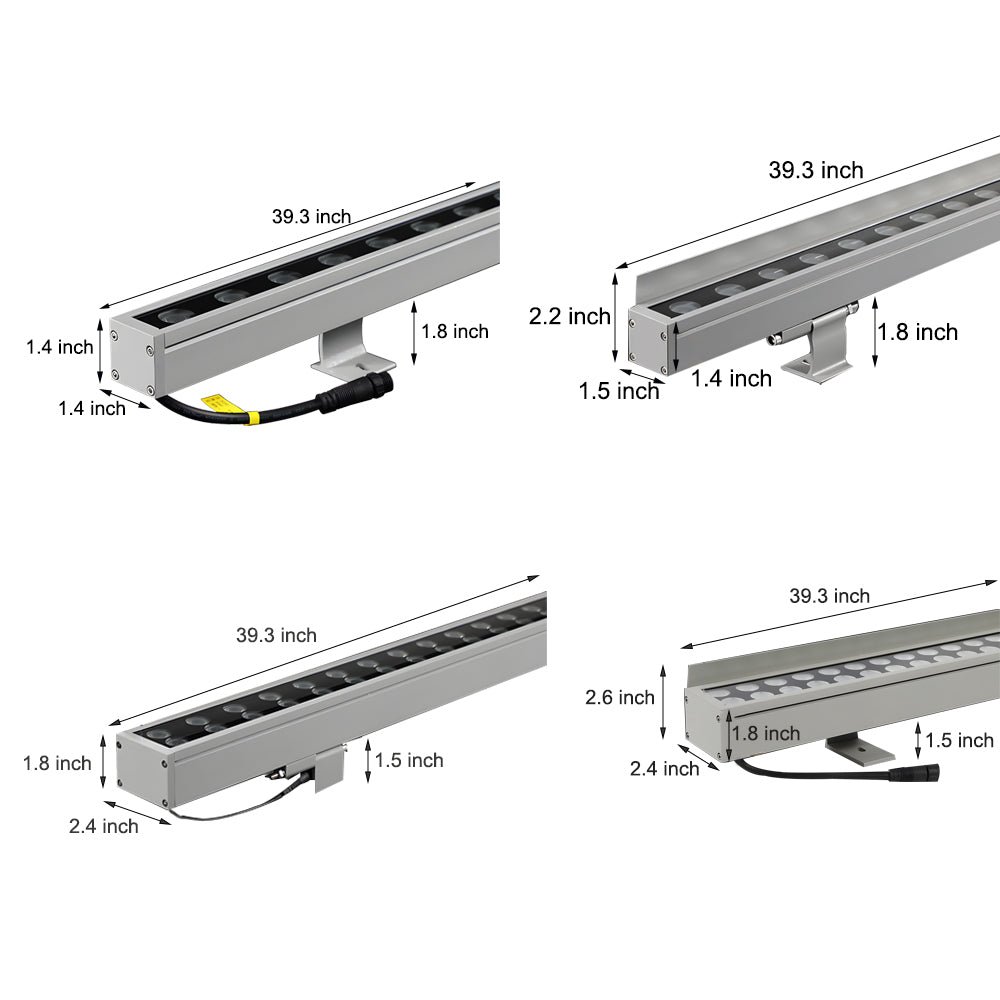

WEIGHTS & DIMENSIONS
| Without Baffle: | |
| 18W: | |
| Weight: | 2.98lb |
| Size: | 39.3′ Length x 1.4′ Width x 3.2′ Height |
| 24W: | |
| Weight: | 2.98lb |
| Size: | 39.3′ Length x 1.4′ Width x 3.2′ Height |
| 36W: | |
| Weight: | 2.98lb |
| Size: | 39.3′ Length x 1.4′ Width x 3.2′ Height |
| 48W: | |
| Weight: | 2.98lb |
| Size: | 39.3′ Length x 2.4′ Width x 3.3′ Height |
| 72W: | |
| Weight: | 2.98lb |
| Size: | 39.3′ Length x 2.4′ Width x 3.3′ Height |
| With Baffle: | |
| 18W: | |
| Weight: | 2.98lb |
| Size: | 39.3′ Length x 1.5′ Width x 4′ Height |
| 24W: | |
| Weight: | 2.98lb |
| Size: | 39.3′ Length x 1.5′ Width x 4′ Height |
| 36W: | |
| Weight: | 2.98lb |
| Size: | 39.3′ Length x 1.5′ Width x 4′ Height |
| 48W: | |
| Weight: | 2.98lb |
| Size: | 39.3′ Length x 2.4′ Width x 4.1′ Height |
| 72W: | |
| Weight: | 2.98lb |
| Size: | 39.3′ Length x 2.4′ Width x 4.1′ Height |
1 in = 2.54 cm; 1 cm = 0.39 in
